Coriender Plant

Semi Automatic Double Motor Pulverize Machines

Semi Automatic Double Motor Pulverize Machines
Speciality of Swastik Raw spices Pulverizer Machine

Machine runs without Fundation since matar is attached to machine, also runs with counter shaft. Grinding of spices in pulverizer machine, spices do not change colour & heat up.

Excellent for grinding raw turmeric, red chilly, coriander seeds, aamchur & spices etc. Ayurvedic Herbs, medicines, mehendi, kattha, gran husk, grourndnut husk, Dal husk, catlle feed, seeds of Aratian free ( Batool ) for poultry, cron, poultry feed, fish, soyalean husk etc.

Spice grinder machine can be attached to flour mill natar to grind spices, & need not attach separate motor drum pulley is to be attached eioth motor ehich is available with us.

Heavy main mesh & 5 other types of mesh with Frame are provided with each machine. Also catlon box, branch, two beater guage is provided with one beater water. Steel cyclenc (gang) with pipe folding is given with machine whichis confartable for clianing & fitting.

Afersaid machines run on 1440, 2800, 960 RPM electric motors & all types of oil engences 3600 RPM is necessary for machines.

Complete machine is manufactured with M.S. Heavy plates. High quality bearying, Japan made pillao block & air type bearing fitted which is long lasting.

Sugar for sweef-meet shop & biscuit industry can be grinded one time like maida in this machine.

Necessary Horse Power 1440 RPM Grinding Chamber in Inches Capacity of Hand Pounded spices Per Hr.
5 to 7.5 6x12 375 KG
7.5 to 10 7x13 425 KG
10 to 12.5 8x14 500 KG
12.5 to 15 9x15 700 KG
15 to 20 10x16 1000 KG
20 to 25 12x16 1300 KG
25 to 30 16x20 1800 KG
40 to 50 18x24 2000 KG
50 to 60 20x30 2300 KG
60 to 70 24x24 3000 KG
70 to 80 30x24 3500 KG

Note:- The capacity & mesh approximate only & depends upon the nature of the materials to be pulvarized.

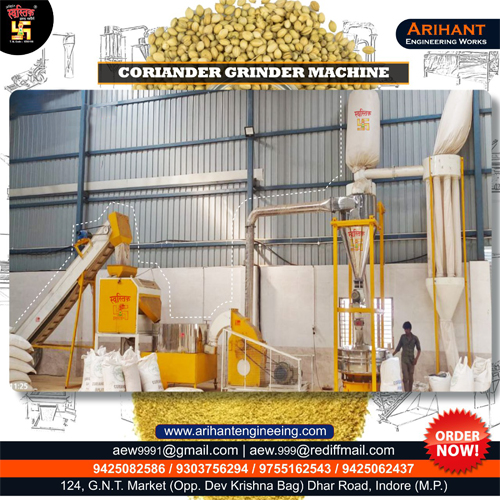

Coriander Grinding Machines

mini spice plant
two stage coriander grinder machine

Speciality of Swastik Raw spices Pulverizer Machine.

Machine runs without Fundation since matar is attached to machine, also runs with counter shaft. Grinding of spices in pulverizer machine, spices do not change colour & heat up.

Excellent for grinding raw turmeric, red chilly, coriander seeds, aamchur & spices etc. Ayurvedic Herbs, medicines, mehendi, kattha, gran husk, grourndnut husk, Dal husk, catlle feed, seeds of Aratian free ( Batool ) for poultry, cron, poultry feed, fish, soyalean husk etc.

Spice grinder machine can be attached to flour mill natar to grind spices, & need not attach separate motor drum pulley is to be attached eioth motor ehich is available with us.

Heavy main mesh & 5 other types of mesh with Frame are provided with each machine. Also catlon box, branch, two beater guage is provided with one beater water. Steel cyclenc (gang) with pipe folding is given with machine whichis confartable for clianing & fitting.

Afersaid machines run on 1440, 2800, 960 RPM electric motors & all types of oil engences 3600 RPM is necessary for machines.

Complete machine is manufactured with M.S. Heavy plates. High quality bearying, Japan made pillao block & air type bearing fitted which is long lasting.

Sugar for sweef-meet shop & biscuit industry can be grinded one time like maida in this machine.

Necessary Horse Power 1440 RPM Grinding Chamber in Inches Capacity of Hand Pounded spices Per Hr.
1 to 2 4x10 50 KG
2 to 3 5x11 70 KG
5 to 7.5 6x12 150 KG
7.5 to 10 7x13 250 KG
10 to 12.5 8x14 325 KG
12 to 15 9x15 375 KG
15 to 20 10x16 425 KG
20 to 25 12x16 600 KG
25 to 30 16x20 850 KG
40 to 50 18x24 1100 KG
50 to 60 20x30
Product Video.
youtube

Mini spice plant automatic coriander grinder
Mini spice plant automatic coriander grinder
Automatic Two Stage coriander
Automatic Two Stage coriander
